Single monitor NO ALARM

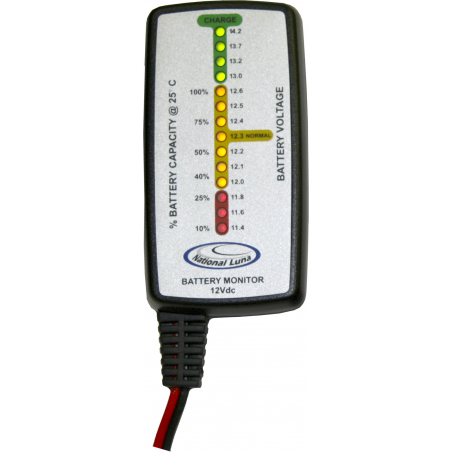

The National Luna single battery monitors can be used for any installation that requires careful monitoring of lead-acid battery condition. These monitors use digital technology for increased accuracy and feature low-voltage and over-charge warnings.
The single monitor is available with or without audible alarms. Models with audible alarms have a mute option as well as display on/off option. A brand-new recessed version of the single monitor is available which is flush-mounting and can be used for permanent installations such as caravans, trailers, solar installations and boats.
|Physical size||94mm (l) x 48mm (w) x 20mm (h) (standard version)|
|Power supply||8Vdc - 15Vdc (display range: 11.4V - 14.2V)|
|Low-voltage warning||DC voltage below 11.4V|
|Over-charge warning||DC voltage above 14.65V|
|Cable||3.5 metre moulded ripcord|
|Power consumption||4mA (sleep mode-option) , 18mA Average|
